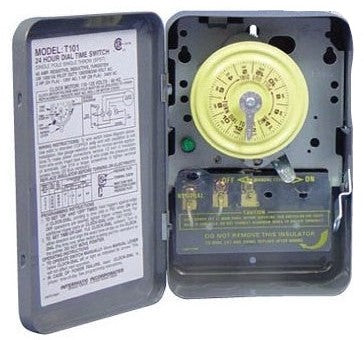

Timer T101 - 120V

Timer T101 - 120V

The T100 Series Mechanical Time Switch has proven it can stand the test of time.
These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day.
A manual override switch provides added convenience.

Features

• Direct 24-hour control of most loads
• Up to 12 ON/OFF operations each day with minimum ON/OFF times of one hour
• Manual override
• One ON and one OFF tripper included

Detailed description

• Minimum ON/OFF Times : 1 hour
• Maximum ON/OFF Operations : 12
• Input Voltages Display : 120 VAC, 60 Hz
• Operation Mode : 24-hours
• Has Override Switch : No
• Electronic Ballast : 16 A, 277 VAC, 60 Hz
• Motor : 2 HP, 24 FLA, 120 VAC, 60 Hz / 5 HP, 28 FLA, 240 VAC, 60 Hz
• Maximum Power Consumption (W) : 3 W
• Operating Temperature Max (°C) : 54
• Operating Temperature Max (F) : 130
• Operating Temperature Min (°C) : -40
• Operating Temperature Min (F) : -40
• Wire Size Max : #8 AWG
• Enclosure Type : Indoor Type 1 Metal
• Product Height (in) : 7 7/8
• Product Height (mm) : 200
• Product Width (in) : 5 1/8
• Product Width (mm) : 130.2
• Product Depth (in) : 3 7/16
• Product Depth (mm) : 87.3
